Ramps & Gangways

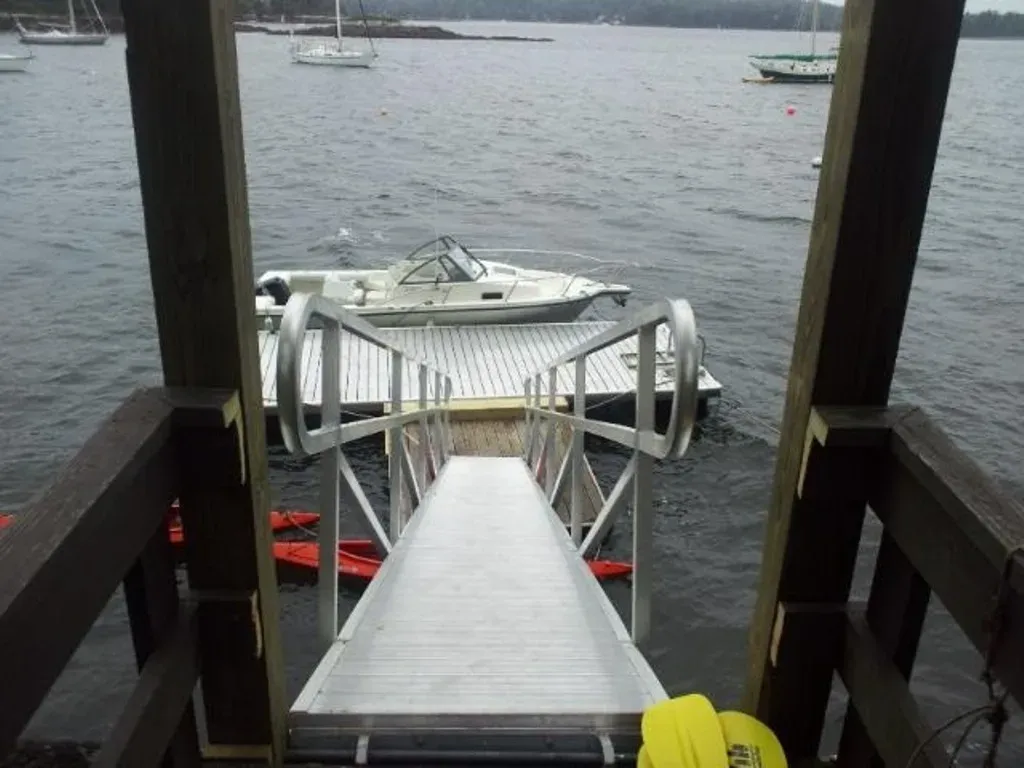

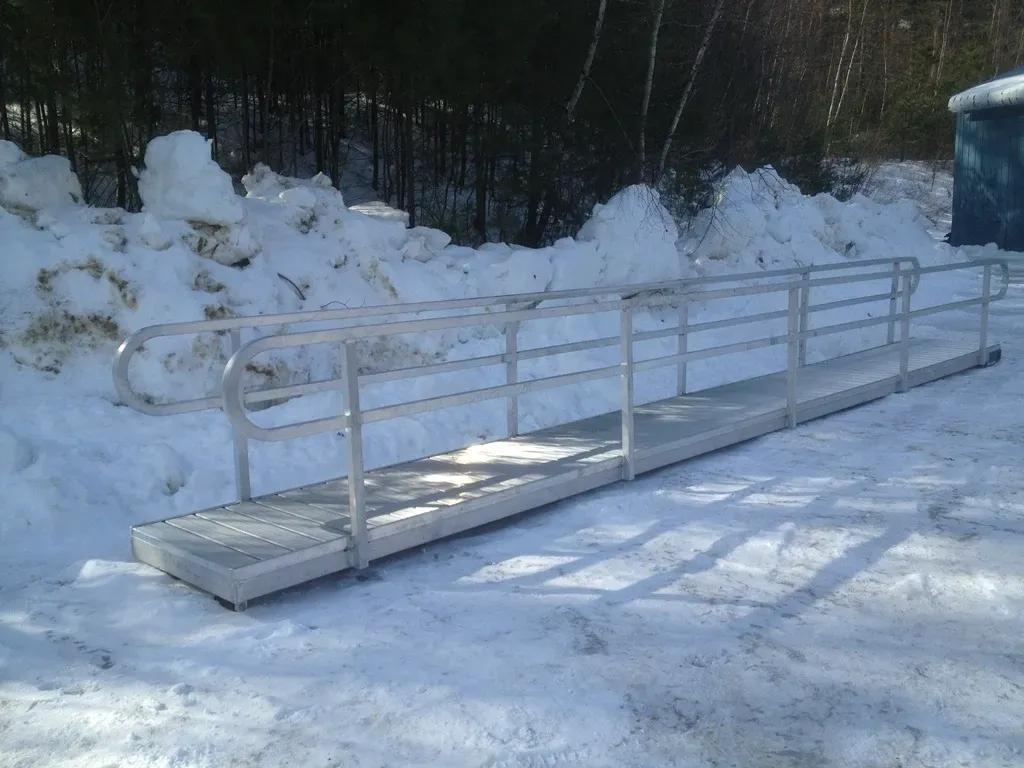

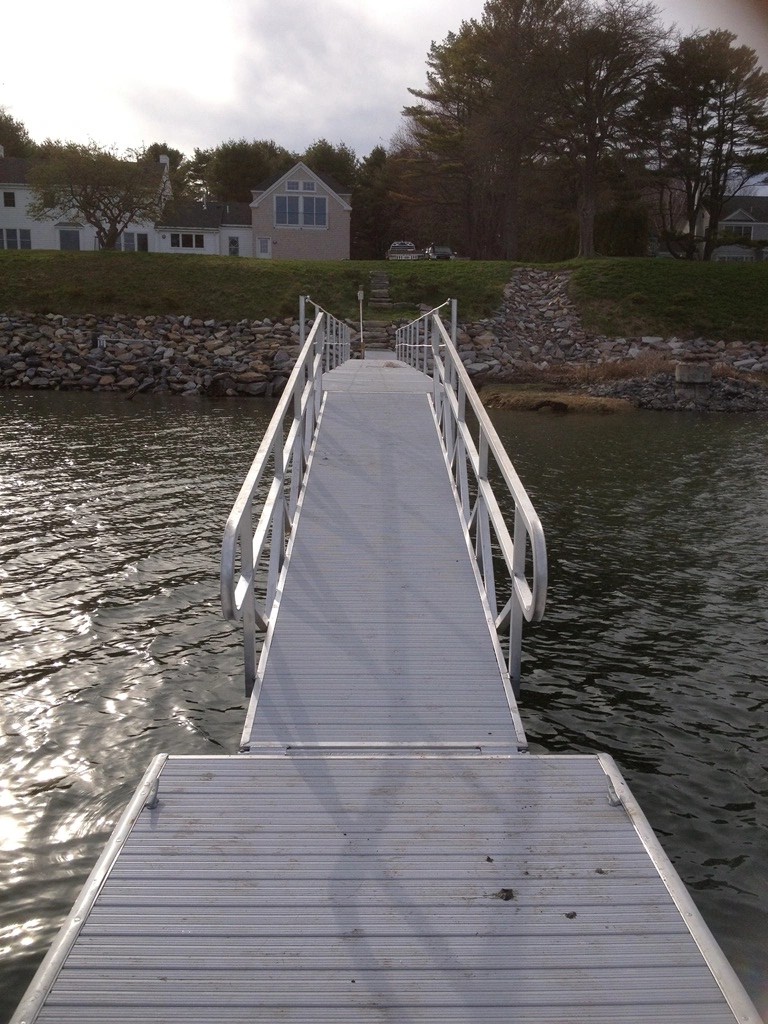

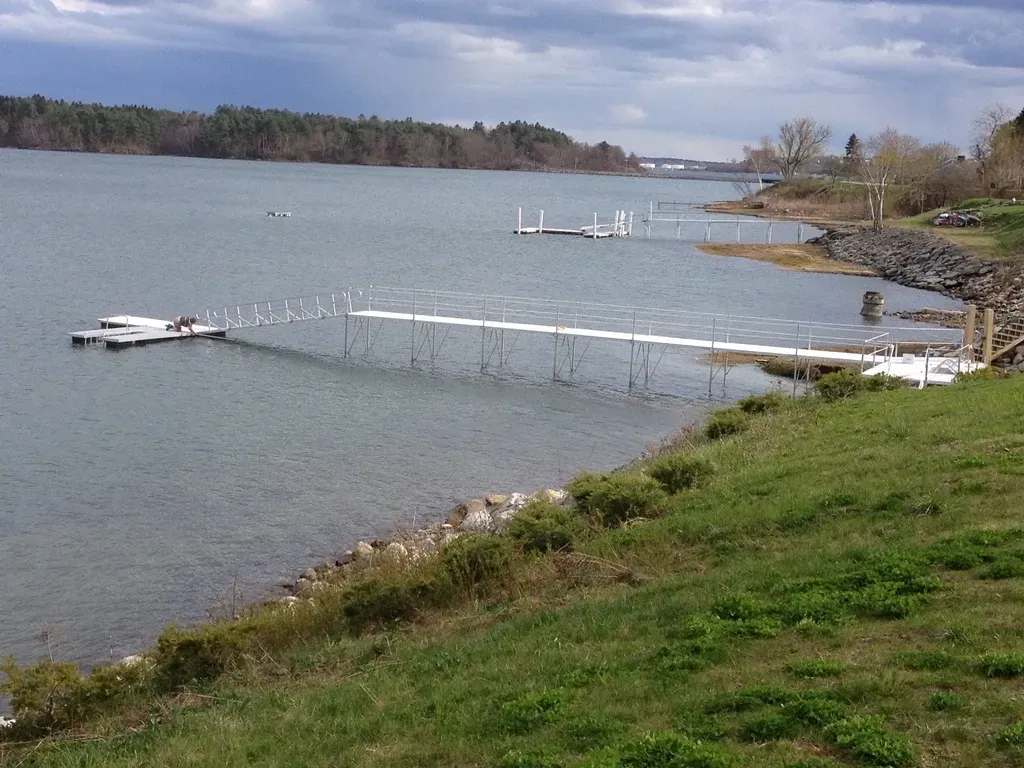

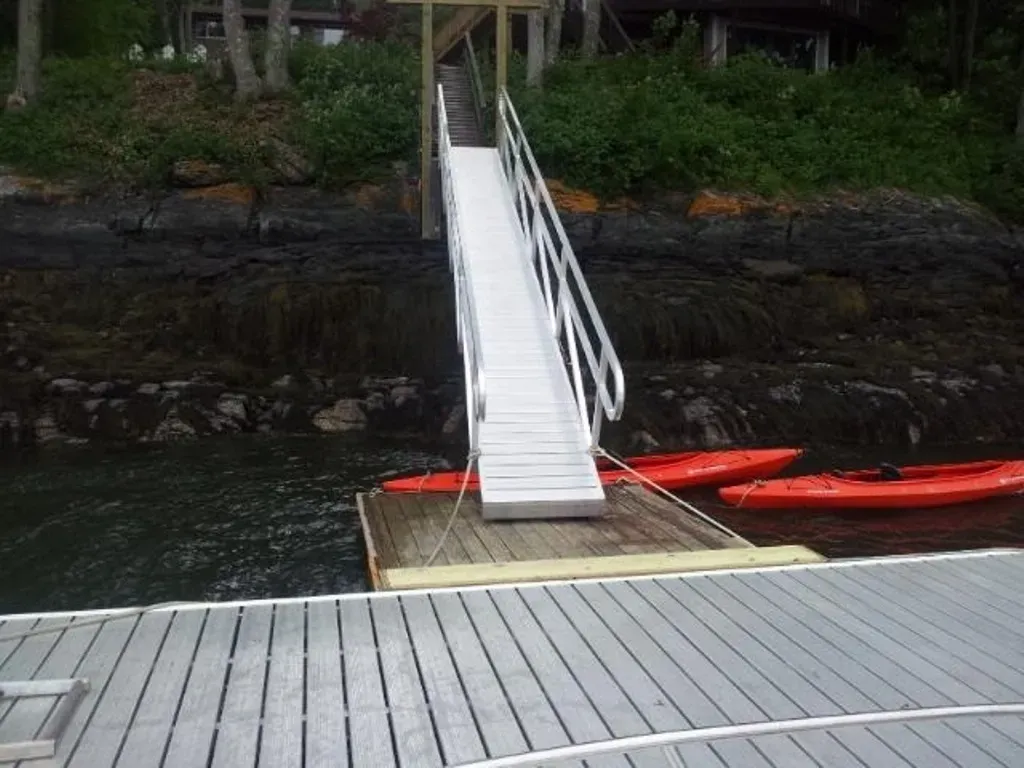

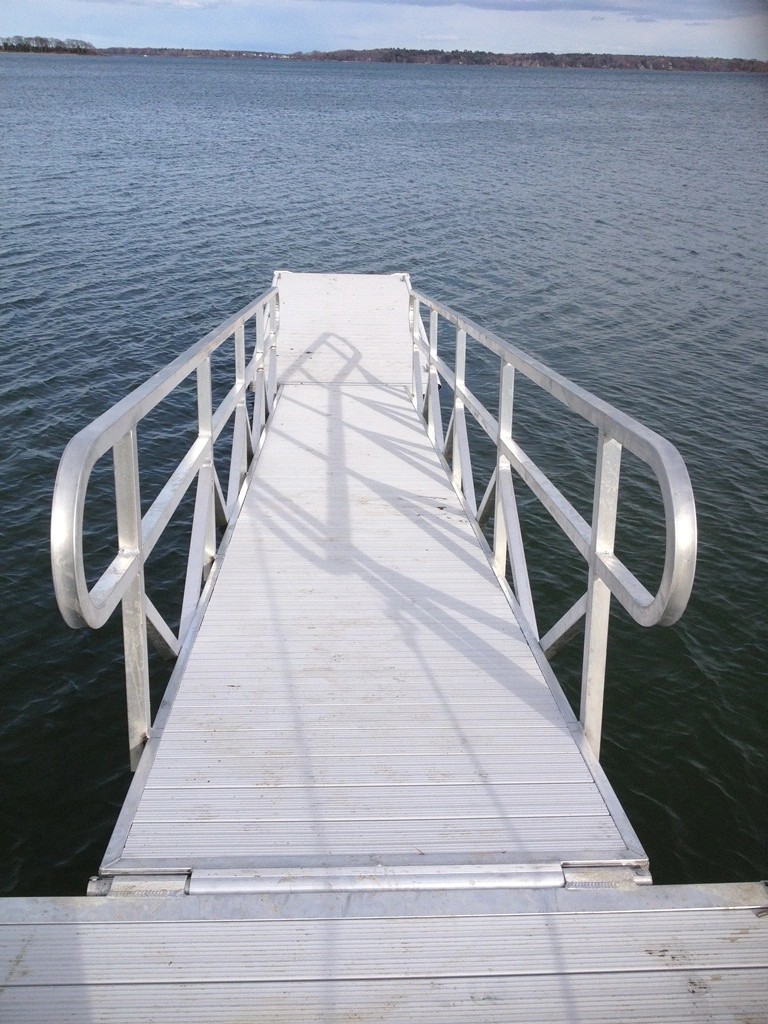

Alummikon Gangways are lightweight, durable, and virtually maintenance-free.

Our dock ramps and gangways are fabricated out of high-strength, marine aluminum alloy.

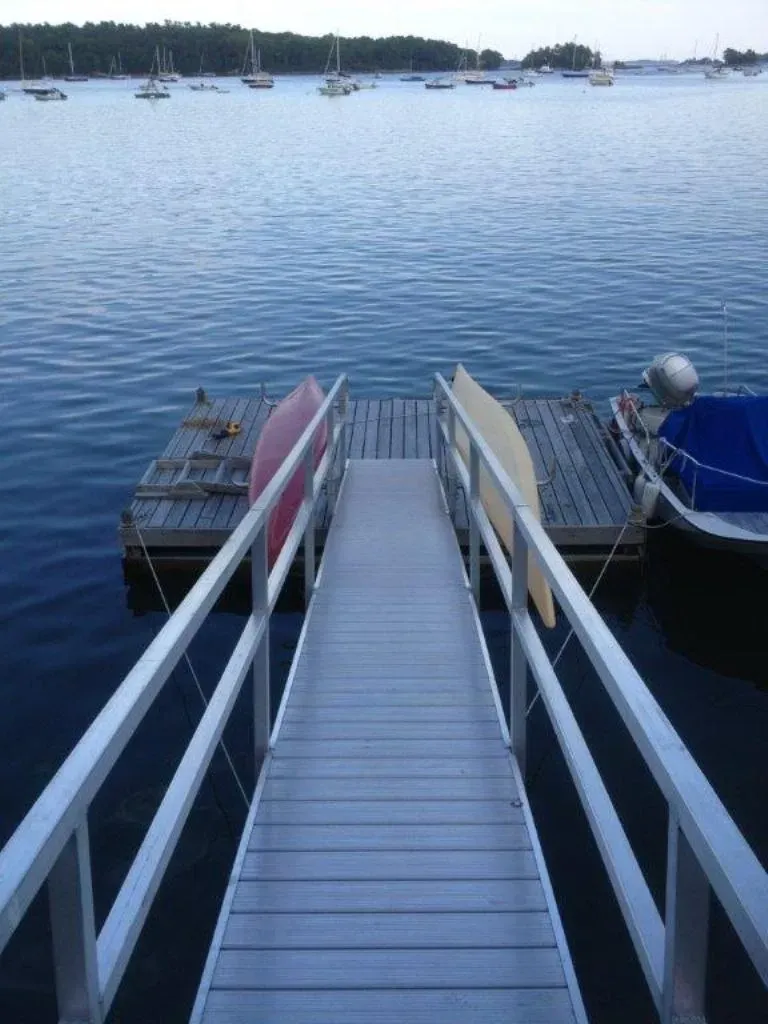

Our gangways and dock ramps offer access solutions for private waterfront residences, commercial waterfront, or any facilities that need to be accessible to the general public. Whether you're looking for a best value aluminum gangway or dock ramp for your home, a commercial aluminum gangway for your marina, or a heavy-duty aluminum gangway for an industrial setting, we can design and build a gangway or ramp to meet all of your needs. Read the guides: ADA Ramp and Gangway Slope Rules, Municipal Waterfront Access Guide, and Camp Waterfront Specifier's Guide.

Durable Aluminum Gangways & Ramps

The marine alloy aluminum used in our gangways and dock ramps resists corrosion, will not rot, split, or rust, and does not require painting or other protective coatings. All of our gangways and dock access ramps have a grooved surface that provides slip resistance when dry or wet.

Our gangways and ramps are easier to handle than gangways or ramps of any other material because of the light weight aluminum; combine that with its strength and rugged construction, and we have built a durable and easy to move aluminum gangway or dock ramp.

They can be transported easily with your very own vehicle and in most cases, can be put into place or removed without cranes or special equipment.

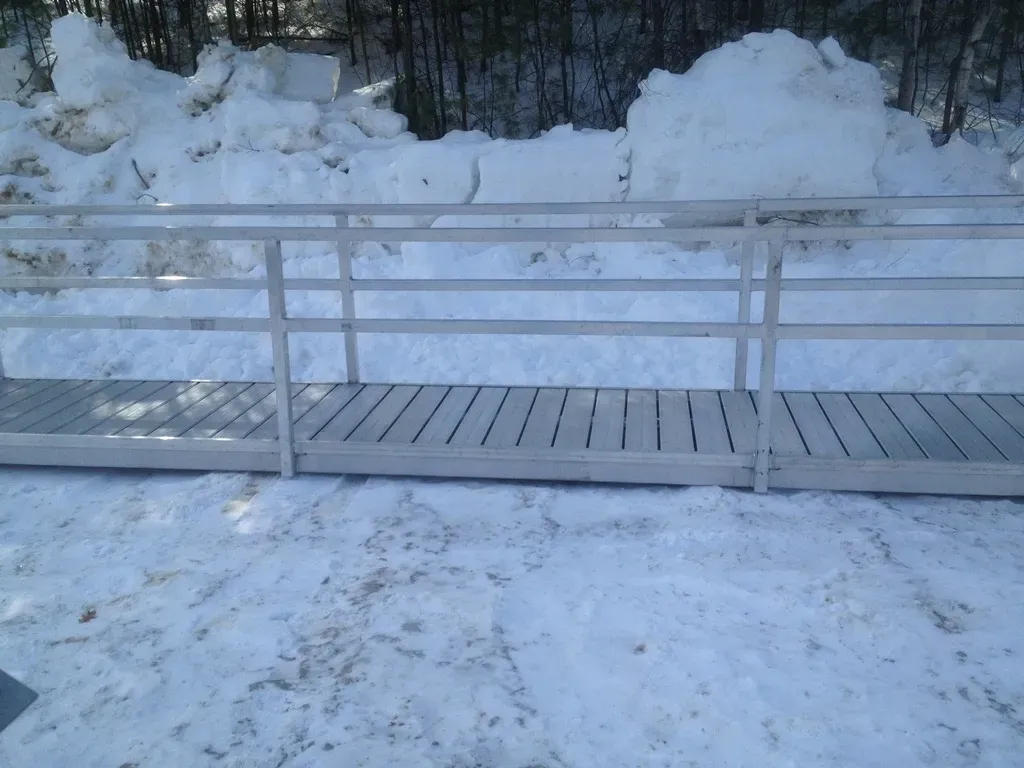

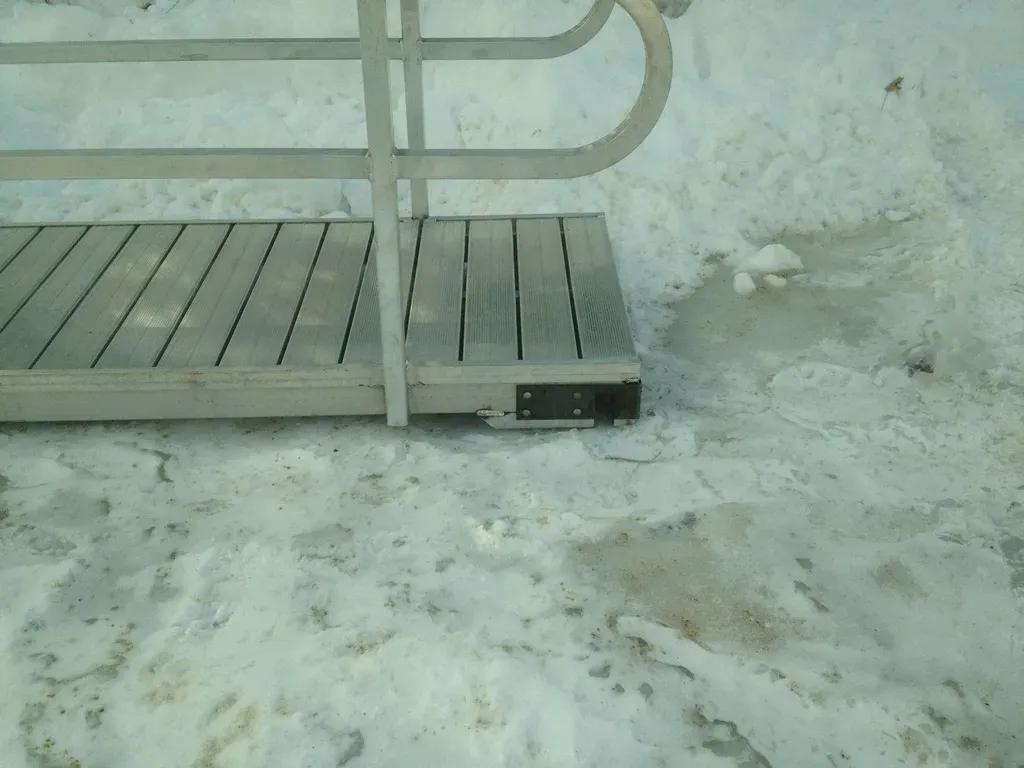

The only difference between a dock ramp and a gangway is that ramps are typically 12-14’ in length with no railings, while gangways are 16' and longer with railings.

Decking Options for ramps and gangways are as follows: cedar, aluminum and Evernew, (vinyl).

Gangways Facts & Specs

Rails 36" residential; 42" commercial, both sides, top and mid rail
2×5 exterior frame
2×3 middle stringers at 2 ft o.c
2×2 square tubing railing, uprights on an 8 ft module

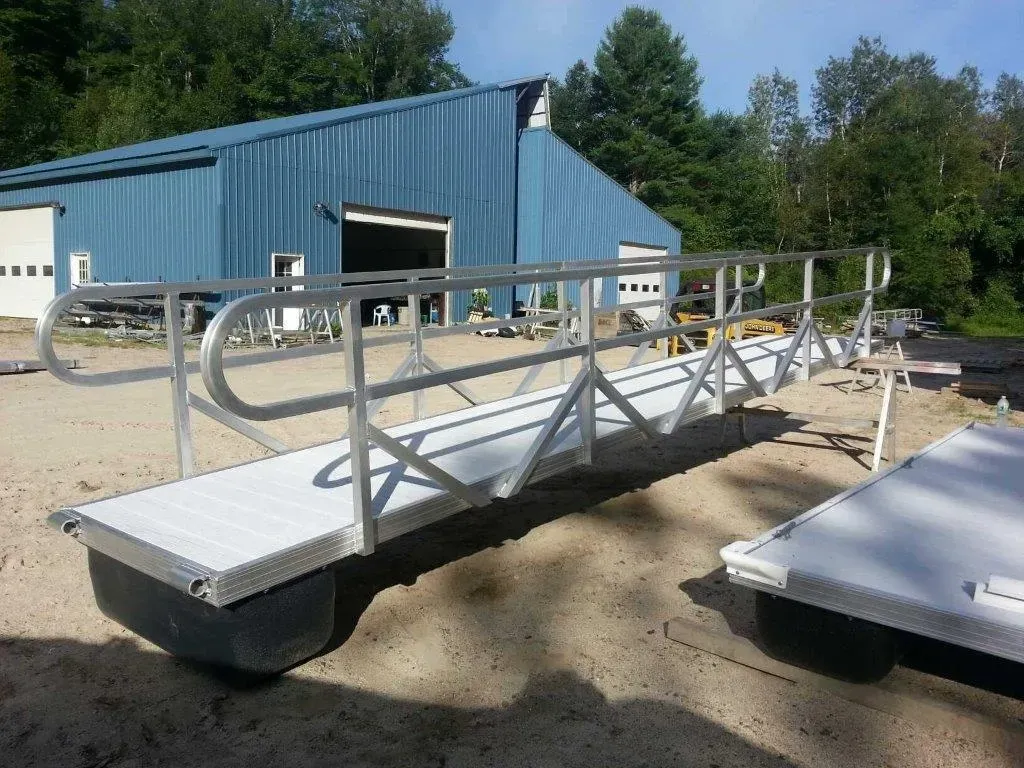

2×2 angle truss in floor for superior lateral stability
Gangways from 16' and longer; long spans built to order
Decking edge trim down entire gangway
Live load: 50–100 lb per sq ft residential, 60–125 lb per sq ft commercial
All welded
2” kick plate

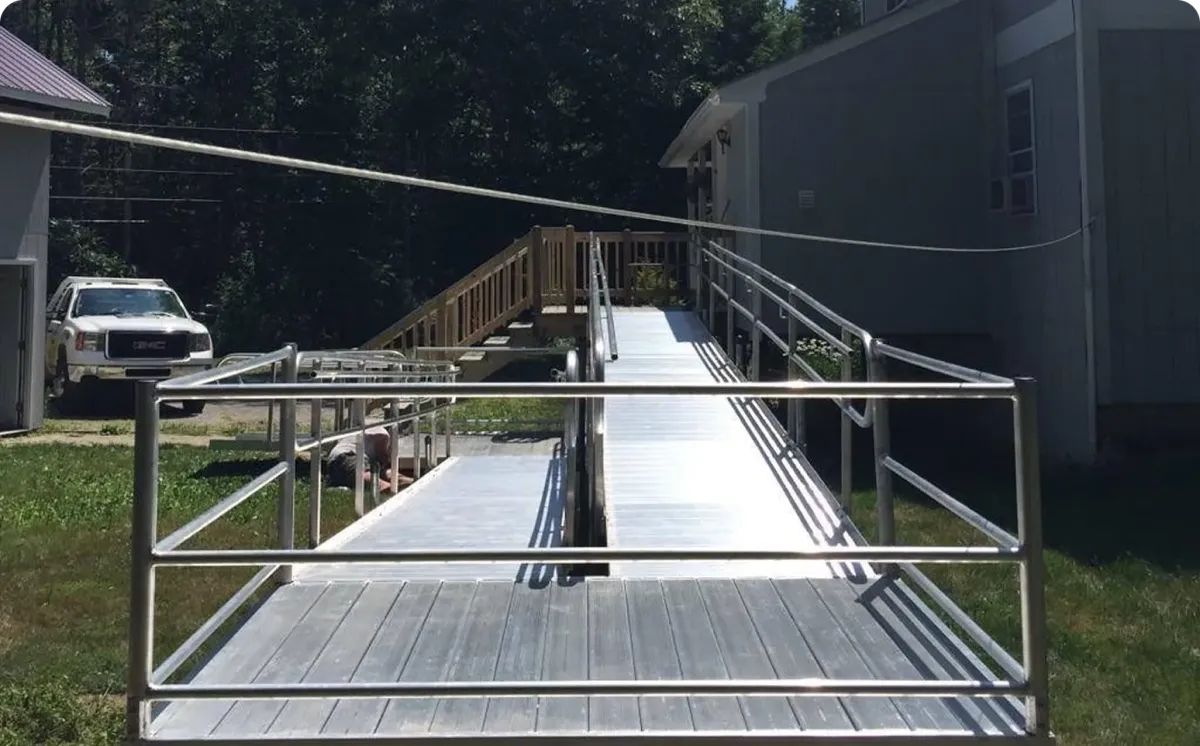

Built for ADA projects. Slope is set by the dock's height above the water and the water level range, which sets the length. ADA allows no steeper than 1:12.
Walking surface width: 4 ft and 3ft
Frame 6061-T6 aluminum; railings 6063-T6 aluminum
15-year warranty against manufacturing defects, including welds
3×1.5 and 4×1.5 access ramps, extra hinge, gangway rollers

How Long Does Your Gangway Need to Be?

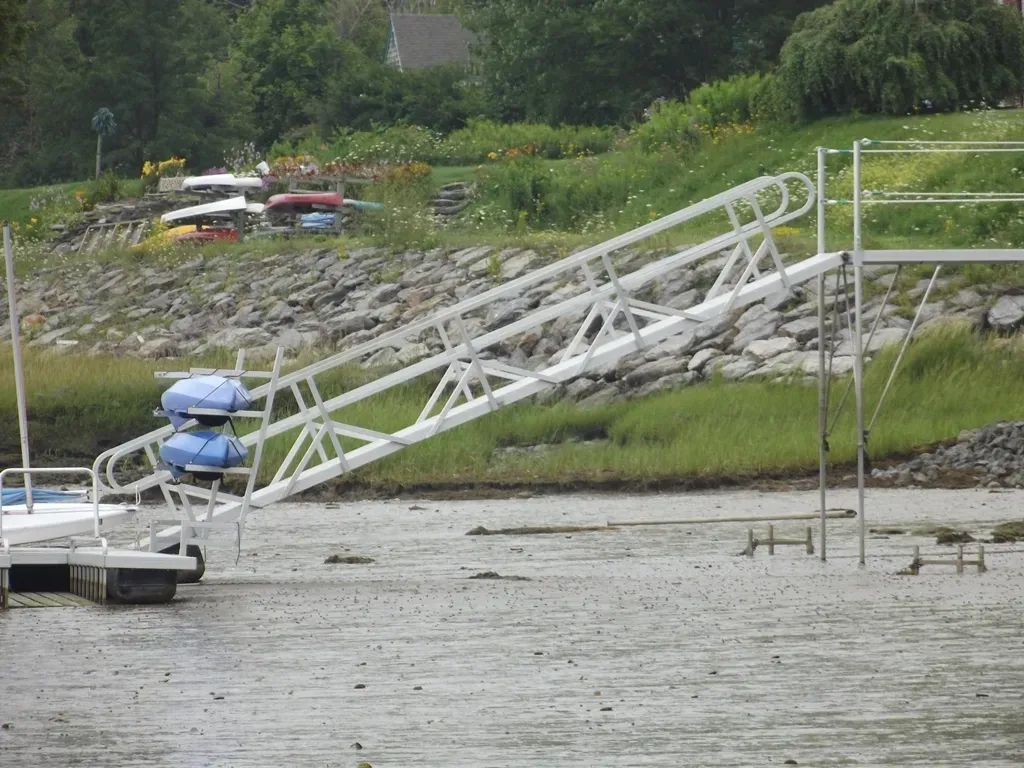

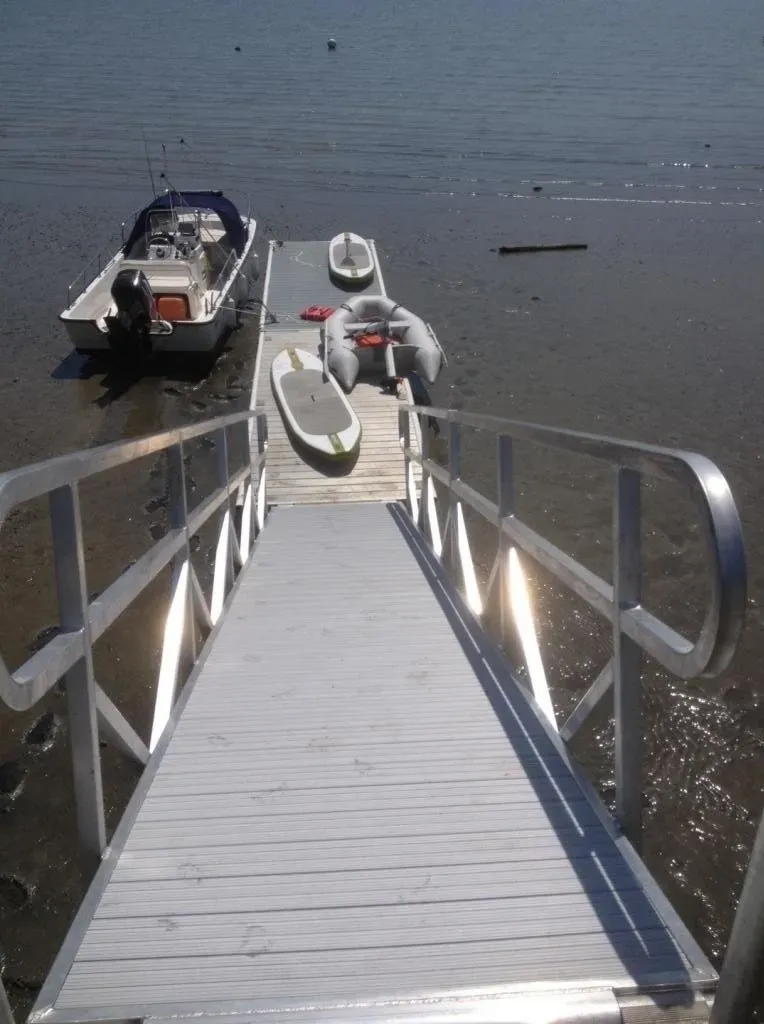

Length is set by two things: how high the dock sits above the water, and how far the water moves. On a tidal or fluctuating site, measure the height difference between the shore landing and the dock at the lowest water you expect. That worst case sets the slope, and the slope sets the length.

For an ADA-accessible gangway: federal rules allow a running slope no steeper than 1:12, so every 1 ft of height difference needs at least 12 ft of gangway. A 2 ft difference at low water needs 24 ft or more.

Get a Gangway Quote Call 207-600-2705

Frequently Asked Questions

What is the difference between a dock ramp and a gangway?

Length and railings. Ramps typically run 12 to 14 ft with no railings. Gangways run 16 ft and longer and carry railings.

How much weight can an aluminum gangway carry?

Our residential gangways are rated for 50 to 100 lb per sq ft of live load, and commercial gangways for 60 to 125 lb per sq ft, depending on length and configuration.

How long should my gangway be?

It depends on the height of the dock above the water and how much the water level changes. Measure at the lowest water you expect. For ADA access, every 1 ft of height difference needs at least 12 ft of gangway.

Can your gangways be ADA accessible?

Yes. We build gangways for ADA projects. Whether the finished installation meets ADA depends on the slope at your site, which is set by the gangway length and the water level range.

What is the warranty?

15 years against manufacturing defects, including the welds.

Do I need a crane to install a gangway?

Usually not. Aluminum is light enough that most gangways can be moved into place or removed without cranes or special equipment.

Decking Options

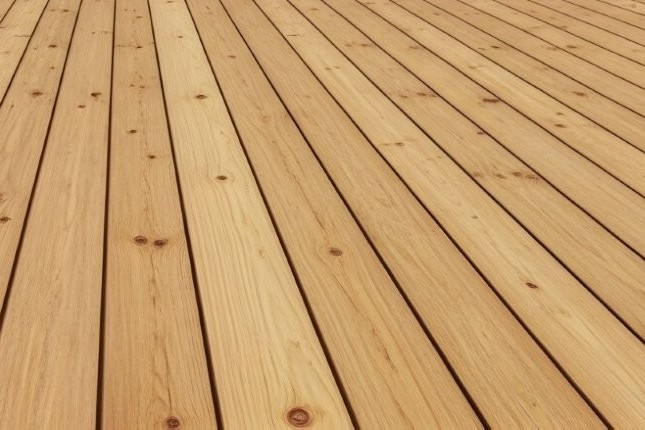

White Cedar

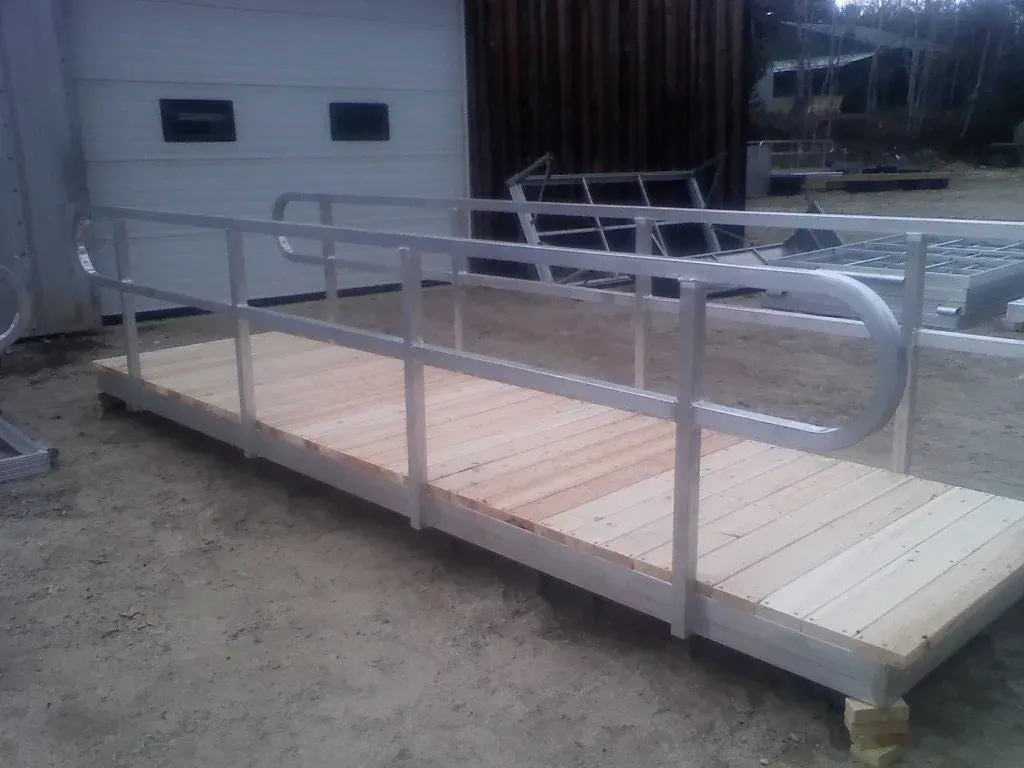

1.5” white cedar decking is used with our Alummikon Frame and works great with commercial floats. White cedar offers the same maintenance and requirements as thin cedar decking, but offers extra strength and durability along with the Alummikon frame. This floating dock was built to with stand rough conditions.

Aluminum

Aluminum decking systems are high performance outdoor decking product designed to look great for decades. Enjoy the value of owning a dock with virtually no annual maintenance costs. The designs and manufacturing process is in place so aluminum does not get hot to the touch- Even in DIRECT SUNLIGHT!!!

Astro Plastics Decking

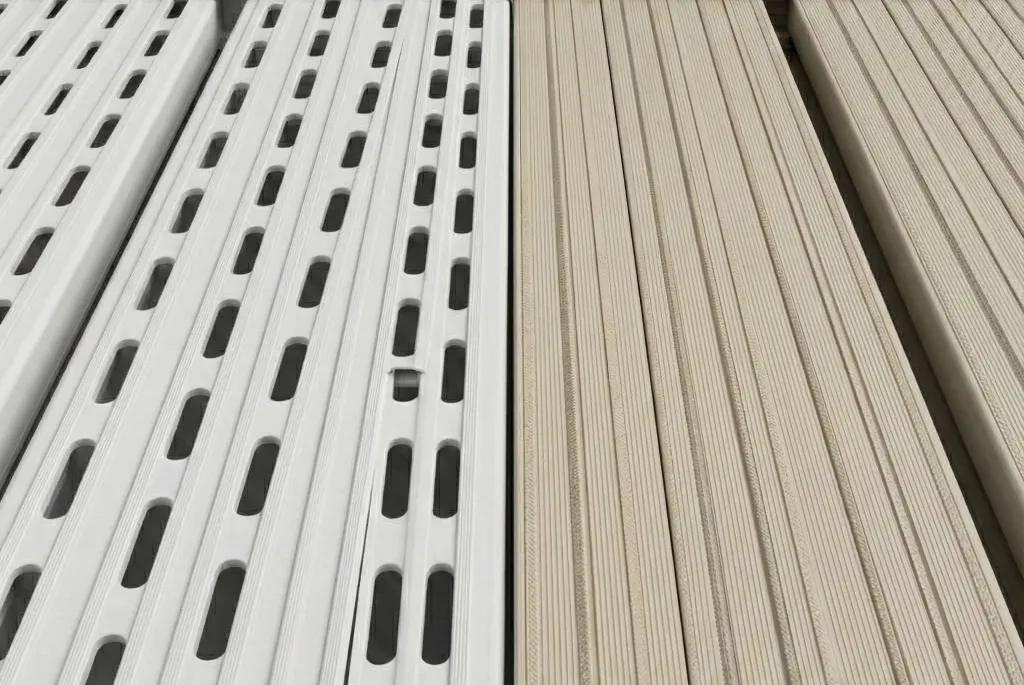

ASTRODOCK marine decking offers the ultimate in durability and barefoot comfort. Crafted from premium outdoor-grade PVC, our system is available in two distinct profiles to suit your environment: the 2x6S Solid for a seamless, hidden-fastener finish, or the 2x6V Ventilated for superior drainage, light penetration, and storm surge protection. Both are non-porous, stain-resistant, and easier to install than wood.

Key Features of Astro Plastics Decking

Rigid, Heavy-Duty Construction: Strong multi-ribbed profile capable of spanning 24” joist spacing (16" recommended).
Seamless Finish: Fasteners are hidden for a clean look with no visible screws or exposed hardware.
Barefoot Friendly: Safe, Sure-grip embossed tread minimizes heat build-up and stays cool to the touch.
Quiet & Solid: Specialized no-squeak design ensures a quiet dock with a stable feel.
Standard Sizing: Matches standard 2x6 board dimensions (5 ½”w x 1 ½”h); available in 12’, 16‘, and 20’ lengths.
Superior Durability: Highly resistant to rot, insects, and UV fading for excellent long-term color retention.
Versatile Profiles: Available in Solid (for full coverage) or Ventilated (allows sunlight and water to pass through).
Safety Ready: Optional safety yellow inserts available for high-visibility zones.

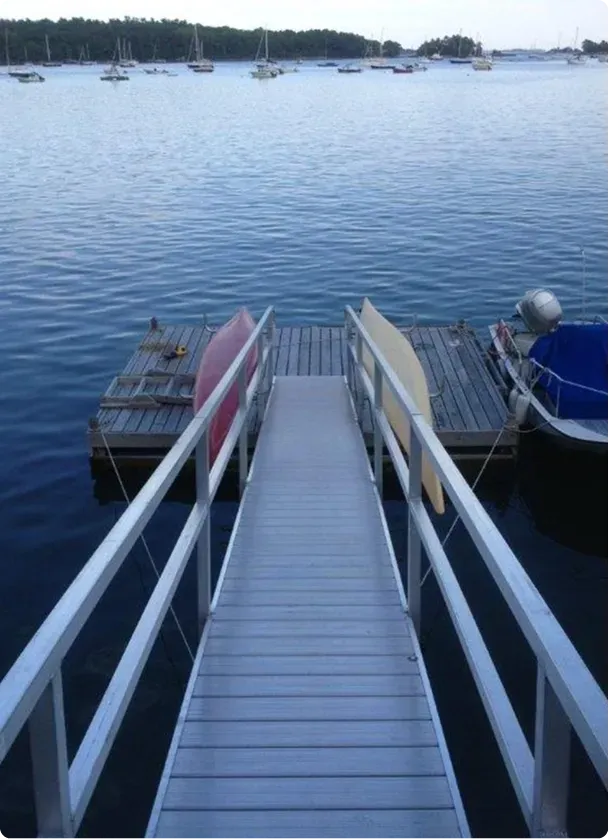

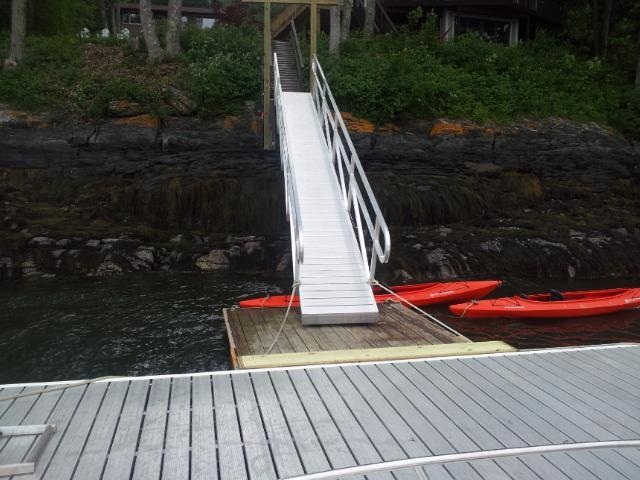

Gangways

2 x 5 Framing
2 x 2 Supports
2 x 3 Supports

Strong materials and construction ensure longevity and durability from shore to dock.

In conjunction with your current dock, we can accommodate site conditions with our gangplank system, eliminating the need for costly onsite custom building or grading.

Our gangplanks are lightweight but strong and can be used with any dock or dock system, new or old.
